Smooth plastic Hdpe Geocells/ geoceldas Geocell honeycomb Gravel Stabilizer Grid Geocell
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Brief Introduction of Geocell Confinement System
Geocell is a kind of geosynthetics widely used in soil reinforcement and erosion control engineering. Also known as cell confinement system, it is a three-dimensional structure made of high-density polyethylene (HDPE) strips. It can expand in the field to form a honeycomb structure and fill it with sand, soil, rock, gravel or concrete. It is simple and clear.
Looking back on history, it was very helpful to American soldiers in wartime. In 1975, US Army Corps of Engineers (U.S. Army Corps of Engineers) has designed a cell restriction system for building tactical roads on soft ground, so that heavy machinery such as tanks and cruise missiles can easily pass through muddy roads. Now, the keywords linked to the product are more like geocell lane, geocell ground grid, geocell ground grid and geocell technology. More and more people begin to understand Chuang Chuang New products and their advantages. Compared with the traditional road construction method, its performance is better than the traditional gravel section. They can provide excellent construction technology for access roads on soft soil foundation without being adversely affected by bad weather conditions. In addition, its applications include but are not limited to road support, slope protection, retaining wall, channel lining and lane construction.
Geocell Confinement System Characteristic
Reduce the total aggregate layer by 30% - 50%: the new alloy geocell provides a harder layer that distributes the load over a wider area and reduces the stress on the subgrade. The increased soil modulus can save about 30% of the asphalt layer and greatly reduce the total pavement thickness. Learn more about geocell technology.
Improve the long-term performance of the road: neoloy geocell distributes the vertical load in a larger area. Known as the "beam effect", the result is to strengthen the base layer and prevent rutting development and subbase degradation. Due to neoloy's stiffness and strength, the soil constraints remain unchanged throughout the design life of the road. PRS is the only company that guarantees 75 years of road performance. Reduce road construction and maintenance costs: overall resources become scarce and costly. Using neoloy geocell, locally available filling materials can be used. Due to our innovative technology, clay, sand and recycled asphalt can achieve the same modulus increase effect. Learn more about neoloy geocell road specification.
Laying method
Construction method and technology of geocell:
1. Working face: some existing slopes have met the requirements, slope restoration is in progress, and working faces will be provided successively.
The flatness of slope is directly related to the success or failure of geosyncline grass protection.
It tends to produce stress concentration and solder joint cracking in the lattice chamber.
Therefore, the slope must be leveled to the design requirements, and pumice and dangerous rocks must be removed by manual slope repair.
2. The side slope of the paving room is provided with a main drainage system.
The distance between two adjacent ditches shall be 4m, and the drainage ditch shall be connected with the ditch at the edge of the road to make the water in the road area flow into the drainage ditch and into the edge of the road, so as to avoid the road area and prevent slope erosion protection.
3. Level the slope top, remove sundries that are not conducive to mesh laying, and keep the slope flat and solid.
You can also start with a good layer of soil to help plants grow.
4. The grid is laid from top to bottom along the main direction to make the grid plate weight perpendicular to the highway subgrade.
Don't lie across.

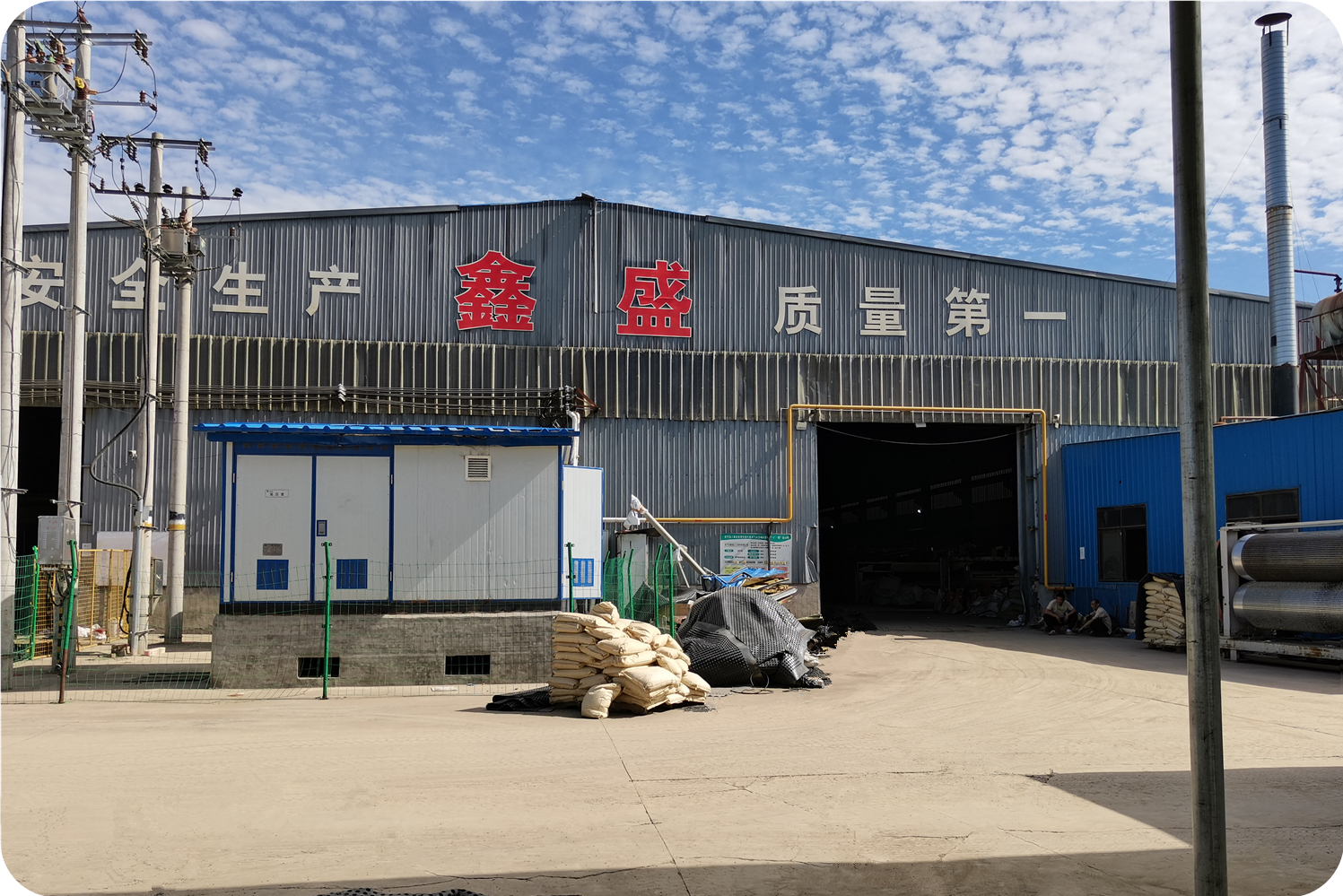

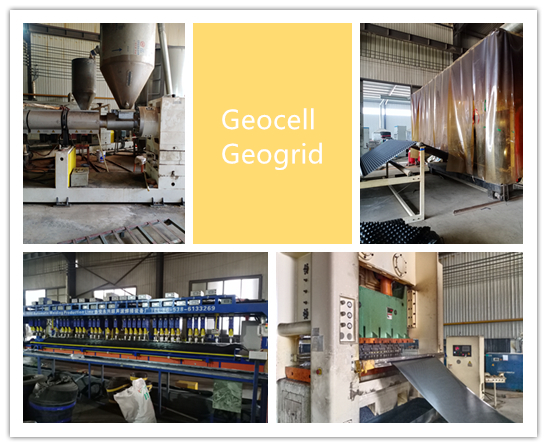

Factory and Equipment:

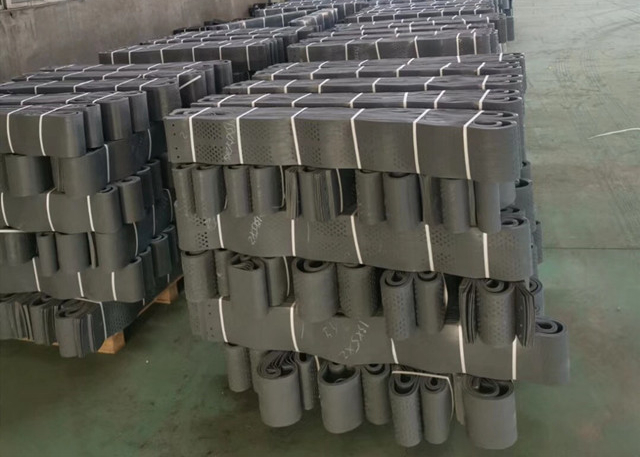

Product inventory:
Application:
Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to its three-dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.
| Product Type | Height
(mm) | Welding Distance
(mm) | Thickness
(mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet (Mpa) |
Smooth and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
| | 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| HDPE geocell type | | Welding Distance(mm) (mm) | Load quantity per 40'GP (Sqm) ( m2) |
| Smooth Perforated and Not Perforated | | | about 16500 |
| Smooth Perforated and Not Perforated | | | about 11100 |
| Smooth Perforated and Not Perforated | | | about 20400 |
| Smooth Perforated and Not Perforated | | | about 13600 |
Year of Registration: 2014
Place of Registration: China
Registrated Capital: CNY105,000,000.00
Briture Co., Ltd
was approved by Chinese Bureau of Commerce
Leo
Tel: +8615031817097
Whatsapp/Wechat: +8615031817097
Email: leo@hengquan-china.com
Website: www.plastic-geogrid.ecer.com
Download PDF: Catalog of Hengquan - geocell.pdf
