50mm-300mm height HDPE geocells cellular confinement system/ground stabilization grid/geo cell solutions
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Brief Introduction of Geocell Confinement System
Cellular cellular confinement system (geocell) is a soil reinforcement and erosion protection material with honeycomb texture and three-dimensional structure, made of high-density polyethylene alloy. It is generally used on sloping surfaces to prevent soil loss that may occur due to water and wind. The reason why it is produced in a perforated structure is fast drainage and easy compression of the filling material. Cells adhered with special ultrasonic welding technology in the factory are sent to the field in strips.
Geocell Confinement System Characteristic
The maintenance of paved and unpaved roads and highways has always been a major problem for all road owners. If the road is not designed and constructed properly, the service life of the road will be greatly shortened, resulting in traffic interruption. Such roads will have pits, uneven pavement, and easy to settle on the extension section, thus interfering with the traffic. The geocell is filled with sand / metal as the subgrade to improve the pavement strength, reduce settlement and form a reflective layer
Cracks and holes. In addition, the use of geocell not only reduces the thickness of the pavement part, but also significantly reduces the downtime caused by maintenance.

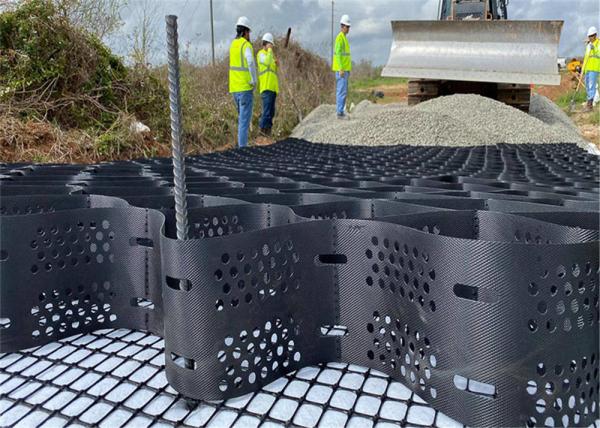

Laying method
Construction method and technology of geocell:
1. Working face: some existing slopes have met the requirements, slope restoration is in progress, and working faces will be provided successively.
The flatness of slope is directly related to the success or failure of geosyncline grass protection.
It tends to produce stress concentration and solder joint cracking in the lattice chamber.
Therefore, the slope must be leveled to the design requirements, and pumice and dangerous rocks must be removed by manual slope repair.
2. The side slope of the paving room is provided with a main drainage system.
The distance between two adjacent ditches shall be 4m, and the drainage ditch shall be connected with the ditch at the edge of the road to make the water in the road area flow into the drainage ditch and into the edge of the road, so as to avoid the road area and prevent slope erosion protection.
3. Level the slope top, remove sundries that are not conducive to mesh laying, and keep the slope flat and solid.
You can also start with a good layer of soil to help plants grow.
4. The grid is laid from top to bottom along the main direction to make the grid plate weight perpendicular to the highway subgrade.
Don't lie across.
Factory and Equipment:
Product inventory:
Application:
Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to its three-dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.
| Product Type | Height
(mm) | Welding Distance
(mm) | Thickness
(mm) | Tensile Strength of Welding Points (N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet (Mpa) |
Smooth and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
| | 50≤H≤250 | 330≤A≤1000 | 1.0~1.2 | ≥100 | ≥120 | ≥20 |
Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| HDPE geocell type | | Welding Distance(mm) (mm) | Load quantity per 40'GP (Sqm) ( m2) |
| Smooth Perforated and Not Perforated | | | about 16500 |
| Smooth Perforated and Not Perforated | | | about 11100 |
| Smooth Perforated and Not Perforated | | | about 20400 |
| Smooth Perforated and Not Perforated | | | about 13600 |
Year of Registration: 2014
Place of Registration: China
Registrated Capital: CNY105,000,000.00
Briture Co., Ltd
was approved by Chinese Bureau of Commerce
Leo
Tel: +8615031817097
Whatsapp/Wechat: +8615031817097
Email: leo@hengquan-china.com
Website: www.plastic-geogrid.ecer.com
Download PDF: Catalog of Hengquan - geocell.pdf
